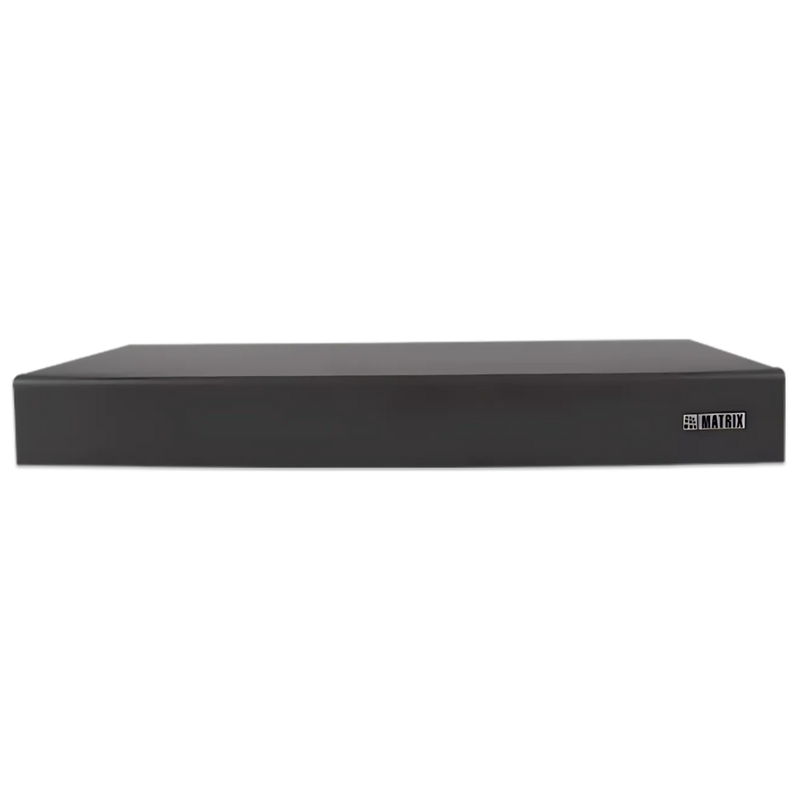

Matrix SATATYA 16 Channel NVR, Supports 4K and HDD Slot

Matrix

Matrix SATATYA 16 Channel NVR, Supports 4K and HDD Slot 1 slot

SKU: SATATYA NVR1601X
Select required product from options below:

HDD : 1 slot

About Product


The Matrix SATATYA 16 Channel NVR series offers powerful and flexible video recording solutions for businesses, institutions and large residential setups requiring high-resolution surveillance and efficient storage management. Designed to support up to 16 IP camera inputs, both the SATATYA NVR1601X (with one HDD slot) and the SATATYA NVR1602X (with two HDD slots) provide seamless integration with cameras delivering resolutions up to 12MP, including 4K, 8MP, 5MP, 4MP, 3MP, 2MP, 720p, D1 and CIF formats.

With advanced local decoding capabilities, these NVRs can handle 2 channels at 4K, 8 channels at 1080p, 16 channels at 720p or 36 channels at D1, all at 30 frames per second, ensuring smooth and reliable playback even across multiple camera feeds. The models feature SATA HDD support with up to 10TB capacity per drive, providing ample space for storing footage and adaptive recording along with camera-wise retention helps optimize storage without compromising critical data.

Beyond storage, these NVRs deliver intelligent features such as SMS and email alerts, video pop-ups, alarms and instant calling through the MATRIX SATATYA SIGHT mobile app, allowing users to stay informed and respond quickly to events. With a throughput of 360Mbps (180Mbps uplink and 180Mbps downlink), they ensure stable and uninterrupted video streaming. Compatibility with ONVIF and other camera brands adds flexibility, allowing users to expand or integrate existing systems effortlessly.

For larger and multi-location setups, cascading support enables the creation of multiple NVR clusters for centralized monitoring and control. Both models are NDAA compliant, meeting stringent security requirements for sensitive and high-stakes environments.

Key Specs


  • RAID: Single Disk
  • ROHS: Yes
  • SAFETY: -
  • Audio-in: 1 Channel, RCA Port (2.0Vp-p), Range (-2dBu to 22dBu)
  • Bandwidth: -
  • COMPRESSION: G.711μ
  • Audio Output: 1 Channel, RCA Port Mono, Unbalanced output, (2.0Vp-p), Range (-2dBu to 22dBu)
  • Max Resolution: 12MP
  • No.Of Channels: 16
  • HDMI/VGA Output: HDMI (2.0) – 1 Port (Main)
  • INTERNAL SATA Ports: 1 SATA III (18TB per port)
  • EXTERNAL HDD (eSATA Port): -

Sign In for Partner Pricing

Not a partner? Register here


Or

Product Specifications

Video

No.Of Channels
16
Max Resolution
12MP
Bandwidth
-
HDMI/VGA Output
HDMI (2.0) – 1 Port (Main)
Screen Split
1x1, 2x2, 3x3, 4x4, 1+5, 1+7, 3+4, 2+8, 1+12, 1©+12, 1+9, 4+9,2+12, 5x5, 6x6 and Sequential

Audio

Audio-in
1 Channel, RCA Port (2.0Vp-p), Range (-2dBu to 22dBu)
Audio Output
1 Channel, RCA Port Mono, Unbalanced output, (2.0Vp-p), Range (-2dBu to 22dBu)

Recording

COMPRESSION
G.711μ
RESOLUTION
up to 12MP
FRAME RATE
-
RECORD BIT RATE
30FPS
BIT RATE1
-
RECORDING MODE
-
RECORDING INTERVAL
-
PRE-EVENT RECORDING INTERVAL
-
POST-EVENT RECORDING INTERVAL
-

VIDEO DETECTION AND ALARMS

TRIGGER EVENTS
Yes
VIDEO DETECTION
Motion Detection, View Tampering, Tripwire, Object Intrusion, Audio Exception, Missing Object, Suspicious Object, Loitering, Object Counting, Recording Start, Recording Fail, Camera offline, Camera online
ALARM INPUT
2
RELAY OUTPUT
-

PLAYBACK AND BACKUP

SYNC PLAYBACK
16-channel
SEARCH MODE
Date and Time, Camera, Recording Type, Recording Drive
PLAYBACK FUNCTION
Fast Forward, Slow Forward, Slow Reverse, Fast Reverse at Different Speed Control, Next-Previous Frame
BACKUP MODE COMPATIBILITY
Manual Backup over USB and NAS, Scheduled Backup over USB, NAS, and FTP Scheduled Backup over USB through USB 2.0 interface Manual Backup over USB through USB 3.0 interface Quick Backup over USB, NAS, and Local PC

NETWORK

ETHERNET
1 Port x Ethernet (RJ-45) 10/100/1000Mbps
POE
-
SUPPORTED PROTOCOLS2
TCP/IP, IPv4, IPv6, DHCP, PPPOE, DDNS, Free Matrix DNS, FTP,SMTP, NTP, RTP/RTSP, CIFS/NFS, Network Acceleration, UDP, HTTP, UPnP, ICMP, RTCP, IGMP, ARP, Multicast, Unicast
MAXIMUM NUMBER OF USERS
128
NETWORK THROUGHPUT
-
SMART PHONE COMPATIBILITY
-

STORAGE

INTERNAL SATA Ports
1 SATA III (18TB per port)
EXTERNAL HDD (eSATA Port)
-
RAID
Single Disk

AUXILIARY INTERFACE

USB PORTS
3 ports (2 x USB 2.0, 1x USB 3.0)
RS232
-

ELECTRICAL

POWER SUPPLY
Adapter 12V DC/3.3A
POWER CONSUMPTION
-

ENVIRONMENTAL

OPERATING TEMPERATURE
0°C to +50°C (32°F to 122°F)
RELATIVE HUMIDITY
5% to 95% RH Non-Condensing
STORAGE TEMPERATURE
-

PHYSICAL

DIMENSIONS
320(without clamp) × 188 x 43
WEIGHT (WITHOUT HDD)
1.36kg

REGULATORY

EMISSIONS
-
IMMUNITY
-
SAFETY
-
ROHS
Yes
